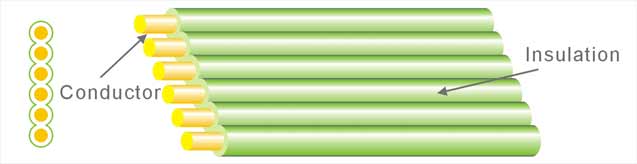

UL 2651 Sensor Wire, Hook-up wire
28 Jul 2019Description:
- Tinned, annealed, stranded or solid copper conductor.
- PVC indulation.
- Rated temperature: 105℃, Rated voltage:300 Volts.
- Uniform thickness of wire to ensure easy stripping and cutting.
- Passes UL VW-1&Cul FT1 vertical flame test.
- Reference Standard:UL758, UL1581,CSA22.2
- Resistant acids,oil,aldalis,moisture and fungus.
Application:
- For general pupose internal wiring of electronic and electrical equipment.
| AWM | Stranded | Cores | Pitch/mm | O.D. |
|---|---|---|---|---|
| 28 | 7/0.127 | 2 | 1.27 | 0.9×1.8 |
| 28 | 7/0.127 | 3 | 1.27 | 0.9×2.7 |
| 28 | 7/0.127 | 4 | 1.27 | 0.9×1.8 |
| 28 | 7/0.127 | 5 | 1.27 | 0.9×4.5 |
- Wall: Insulation Thinckness : 0.23mm
- O.D.:Overall Dimete (mm)
- Resistance: Conductor resistance at 20℃/M</p>
-
Resistance: refeence UL758, or Our AWM DATASHEET
- Other Reference：UL iQ Style Page : UL 2651
