Mini RF Co-axial Cable, UL1354 Co-Axial Cable
25 Jul 2019
| AWG |
Material |
Construction(No/mm) | Nom.Dia(mm) | Insulation Material |
Nom.Dia(mm) | Shielding Material | Nom.Dia(mm) | Jacket Material | Nom.Dia(mm) |
| 36 | SPC | 7/0.05 | 0.15 | FEP | 0.40 | SPC | 0.60 | FEP | 0.81 |
| 36 | SPC | 7/0.05 | 0.15 | FEP | 0.40 | TC | 0.60 | FEP | 0.81 |
| 36 | TC | 7/0.05 | 0.15 | FEP | 0.40 | TC | 0.60 | FEP | 0.81 |
| 32 | SPC | 7/0.08 | 0.24 | FEP | 0.66 | SPC | 0.86 | FEP | 1.13 |
| 32 | SPC | 7/0.08 | 0.24 | FEP | 0.66 | TC | 0.86 | FEP | 1.13 |
| 32 | TC | 7/0.08 | 0.24 | FEP | 0.66 | TC | 0.86 | FEP | 1.13 |
| 32 | SPC | 7/0.08 | 0.24 | FEP | 0.66 | TC | 0.86 | FEP | 1.37 |
| 32 | TC | 7/0.08 | 0.24 | FEP | 0.66 | TC | 0.86 | FEP | 1.37 |
| 30 | SPC | 7/0.10 | 0.30 | FEP | 0.66 | TC | 1.06 | PVC | 1.78 |
| 30 | TC | 7/0.10 | 0.30 | FEP | 0.66 | TC | 1.06 | PVC | 1.78 |

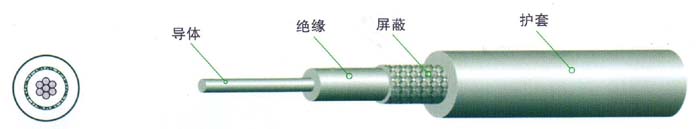

* Impedance: 50Ω
* Tinned or bare, stranded or solid copper, Conductor.
* Solid FEP inslulation.
* Silver plated, tinned or bare copper wire braid shield available.
* Lead free PVC or FEP jacket
* Shield meets FCC/RF1/EM1 emission control requiremetens.
* Reference：
1) UL iQ Style Page : UL 1354
